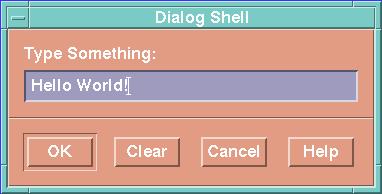

/* Written by Paula Ferguson. * Copyright 1994, O'Reilly & Associates, Inc. * Permission to use, copy, and modify this program without * restriction is hereby granted, as long as this copyright * notice appears in each copy of the program source code. * This program is freely distributable without licensing fees and * is provided without guarantee or warrantee expressed or implied. * This program is -not- in the public domain. */ /* action_area2.c -- a variation of action_area.c that uses the Motif 1.2 * TemplateDialog to create a customized dialog. */ #include <Xm/PushB.h> #include <Xm/LabelG.h> #include <Xm/RowColumn.h> #include <Xm/TextF.h> #include <Xm/MessageB.h> typedef struct { char *label; void (*callback)(); XtPointer data; } ActionAreaItem; static void do_dialog(), close_dialog(), activate_cb(), ok_pushed(), clear_pushed(), help(); main(argc, argv) int argc; char *argv[]; { Widget toplevel, button; XtAppContext app; XtSetLanguageProc (NULL, NULL, NULL); toplevel = XtVaAppInitialize (&app, "Demos", NULL, 0, &argc, argv, NULL, NULL); button = XtVaCreateManagedWidget ("Push Me", xmPushButtonWidgetClass, toplevel, NULL); XtAddCallback (button, XmNactivateCallback, do_dialog, NULL); XtRealizeWidget (toplevel); XtAppMainLoop (app); } /* callback routine for "Push Me" button. Actually, this represents * a function that could be invoked by any arbitrary callback. Here, * we demonstrate how one can build a standard customized dialog box. * The control area is created here and the action area is created in * a separate, generic routine: CreateActionArea(). */ static void do_dialog(w, client_data, call_data) Widget w; /* will act as dialog's parent */ XtPointer client_data; XtPointer call_data; { Widget dialog, rc, text_w; XmString string; Arg args[5]; int n = 0; extern void CreateActionArea(); static ActionAreaItem action_items[] = { { "OK", ok_pushed, NULL }, { "Clear", clear_pushed, NULL }, { "Cancel", close_dialog, NULL }, { "Help", help, "Help Button" }, }; /* Create a TemplateDialog that will contain the control area * and the action area buttons for the dialog */ string = XmStringCreateLocalized ("Dialog Shell"); XtSetArg (args[n], XmNdialogTitle, string); n++; XtSetArg (args[n], XmNautoUnmanage, False); n++; dialog = XmCreateTemplateDialog (XtParent (w), "dialog", args, n); XmStringFree (string); /* now that the dialog is created, set the Cancel button's * client data, so close_dialog() will know what to destroy. */ action_items[2].data = (XtPointer) dialog; /* create the control area which contains a * Label gadget and a TextField widget. */ rc = XtVaCreateWidget ("control_area", xmRowColumnWidgetClass, dialog, NULL); string = XmStringCreateLocalized ("Type Something:"); XtVaCreateManagedWidget ("label", xmLabelGadgetClass, rc, XmNlabelString, string, NULL); XmStringFree (string); text_w = XtVaCreateManagedWidget ("text-field", xmTextFieldWidgetClass, rc, NULL); /* RowColumn is full -- now manage */ XtManageChild (rc); /* Set the client data for the "OK" and "Clear" buttons */ action_items[0].data = (XtPointer) text_w; action_items[1].data = (XtPointer) text_w; /* Create the action area. */ CreateActionArea (dialog, action_items, XtNumber (action_items)); /* callback for Return in TextField. Use dialog as client data */ XtAddCallback (text_w, XmNactivateCallback, activate_cb, dialog); XtManageChild (dialog); XtPopup (XtParent (dialog), XtGrabNone); } /* The next four functions are the callback routines for the buttons * in the action area for the dialog created above. Again, they are * simple examples, yet they demonstrate the fundamental design approach. */ static void close_dialog(w, client_data, call_data) Widget w; XtPointer client_data; XtPointer call_data; { Widget shell = (Widget) client_data; XtDestroyWidget (shell); } /* The "ok" button was pushed or the user pressed Return */ static void ok_pushed(w, client_data, call_data) Widget w; XtPointer client_data; XtPointer call_data; { Widget text_w = (Widget) client_data; XmAnyCallbackStruct *cbs = (XmAnyCallbackStruct *) call_data; char *text = XmTextFieldGetString (text_w); printf ("String = %s\n", text); XtFree (text); } static void clear_pushed(w, client_data, call_data) Widget w; XtPointer client_data; XtPointer call_data; { Widget text_w = (Widget) client_data; XmAnyCallbackStruct *cbs = (XmAnyCallbackStruct *) call_data; /* cancel the whole operation; reset to NULL. */ XmTextFieldSetString (text_w, ""); } static void help(w, client_data, call_data) Widget w; XtPointer client_data; XtPointer call_data; { String string = (String) client_data; puts(string); } /* When Return is pressed in TextField widget, respond by getting * the designated "default button" in the action area and activate * it as if the user had selected it. */ static void activate_cb(text_w, client_data, call_data) Widget text_w; /* user pressed Return in this widget */ XtPointer client_data; /* dialog passed as client data */ XtPointer call_data; { XmAnyCallbackStruct *cbs = (XmAnyCallbackStruct *) call_data; Widget dflt, dialog = (Widget) client_data; /* get the "default button" from the action area... */ XtVaGetValues (dialog, XmNdefaultButton, &dflt, NULL); if (dflt) /* sanity check -- this better work */ /* make the default button think it got pushed using * XtCallActionProc(). This function causes the button * to appear to be activated as if the user pressed it. */ XtCallActionProc (dflt, "ArmAndActivate", cbs->event, NULL, 0); } void CreateActionArea(dialog, actions, num_actions) Widget dialog; ActionAreaItem *actions; int num_actions; { Widget widget; int i; for (i = 0; i < num_actions; i++) { widget = XtVaCreateManagedWidget (actions[i].label, xmPushButtonWidgetClass, dialog, XmNshowAsDefault, i == 0, XmNdefaultButtonShadowThickness, 1, NULL); if (actions[i].callback) XtAddCallback (widget, XmNactivateCallback, actions[i].callback, actions[i].data); if (i == 0) XtVaSetValues (dialog, XmNdefaultButton, widget, NULL); } }
