/* Written by Dan Heller and Paula Ferguson.
* Copyright 1994, O'Reilly & Associates, Inc.
* Permission to use, copy, and modify this program without
* restriction is hereby granted, as long as this copyright
* notice appears in each copy of the program source code.
* This program is freely distributable without licensing fees and
* is provided without guarantee or warrantee expressed or implied.
* This program is -not- in the public domain.
*/

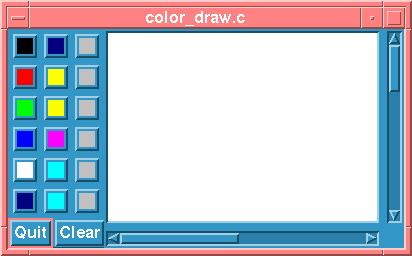

/* color_draw.c -- simple drawing program using predefined colors. */
#include <Xm/MainW.h>
#include <Xm/DrawingA.h>
#include <Xm/PushBG.h>
#include <Xm/PushB.h>
#include <Xm/RowColumn.h>
#include <Xm/ScrolledW.h>
#include <Xm/Form.h>
GC gc;
Pixmap pixmap;
/* dimensions of drawing area (pixmap) */
Dimension width, height;
String colors[] = {
"Black", "Red", "Green", "Blue", "White", "Navy", "Orange", "Yellow",
"Pink", "Magenta", "Cyan", "Brown", "Grey", "LimeGreen", "Turquoise",
"Violet", "Wheat", "Purple"
};
void
Exit(drawing_a, client_data, call_data)
Widget drawing_a;
XtPointer client_data;
XtPointer call_data;
{
exit(0);
}
main(argc, argv)
int argc;
char *argv[];
{
Widget toplevel, main_w, sw, rc, form, drawing_a, pb;
XtAppContext app;
XGCValues gcv;
void draw(), redraw(), set_color(), exit(), clear_it();
int i;
XtActionsRec actions;
String translations = /* for the DrawingArea widget */
": draw(down)\n\
: draw(up) \n\
: draw(motion)";
XtSetLanguageProc (NULL, NULL, NULL);
toplevel = XtVaAppInitialize (&app, "Demos", NULL, 0,
&argc, argv, NULL, NULL);
/* Create a MainWindow to contain the drawing area */
main_w = XtVaCreateManagedWidget ("main_w",
xmFormWidgetClass, toplevel, NULL);
/* Create a GC for drawing (callback). Used a lot -- make global */
gcv.foreground = WhitePixelOfScreen (XtScreen (main_w));
gc = XCreateGC (XtDisplay (main_w),
RootWindowOfScreen (XtScreen (main_w)), GCForeground, &gcv);
/* Create a 3-column array of color tiles */
rc = XtVaCreateWidget ("rc", xmRowColumnWidgetClass, main_w,
XmNnumColumns, 3,
XmNpacking, XmPACK_COLUMN,
XmNleftAttachment, XmATTACH_FORM,
XmNtopAttachment, XmATTACH_FORM,
NULL);
for (i = 0; i < XtNumber(colors); i++) {
/* Create a single tile (pixmap) for each color */
pixmap = XCreatePixmap (XtDisplay (rc),
RootWindowOfScreen (XtScreen (rc)),
16, 16, DefaultDepthOfScreen (XtScreen (rc)));
set_color (rc, colors[i], NULL); /* set the gc's color according to name */
//set_color (rc, colors[i]); /* set the gc's color according to name */
XFillRectangle (XtDisplay (main_w), pixmap, gc, 0, 0, 16, 16);
pb = XtVaCreateManagedWidget (colors[i], xmPushButtonWidgetClass, rc,
XmNlabelType, XmPIXMAP,
XmNlabelPixmap, pixmap,
NULL);
/* callback for this pushbutton sets the current color */
XtAddCallback (pb, XmNactivateCallback, set_color, colors[i]);
}
XtManageChild (rc);
pb = XtVaCreateManagedWidget ("Quit",
xmPushButtonGadgetClass, main_w,
XmNleftAttachment, XmATTACH_FORM,
XmNtopAttachment, XmATTACH_WIDGET,
XmNtopWidget, rc,
NULL);
/* XtAddCallback (pb, XmNactivateCallback, exit, NULL); */
XtAddCallback (pb, XmNactivateCallback, Exit, NULL);
/* Clear button -- wait till DrawingArea is created so we can use
* it to pass as client data.
*/
pb = XtVaCreateManagedWidget ("Clear",
xmPushButtonGadgetClass, main_w,
XmNleftAttachment, XmATTACH_WIDGET,
XmNleftWidget, pb,
XmNtopAttachment, XmATTACH_WIDGET,
XmNtopWidget, rc,
NULL);
sw = XtVaCreateManagedWidget ("scrolled_win",
xmScrolledWindowWidgetClass, main_w,
XmNwidth, 300,
XmNscrollingPolicy, XmAUTOMATIC,
XmNscrollBarDisplayPolicy, XmAS_NEEDED,
XmNtopAttachment, XmATTACH_FORM,
XmNbottomAttachment, XmATTACH_FORM,
XmNleftAttachment, XmATTACH_WIDGET,
XmNleftWidget, rc,
XmNrightAttachment, XmATTACH_FORM,
NULL);
/* Add the "draw" action/function used by the translation table
* parsed by the translations resource below.
*/
actions.string = "draw";
actions.proc = draw;
XtAppAddActions (app, &actions, 1);
/* Create a DrawingArea widget. Make it 5 inches wide by 6 inches tall.
* Don't let it resize so the Clear Button doesn't force a resize.
*/
drawing_a = XtVaCreateManagedWidget ("drawing_a",
xmDrawingAreaWidgetClass, sw,
XmNtranslations, XtParseTranslationTable (translations),
XmNunitType, Xm1000TH_INCHES,
XmNwidth, 5000, /* 5 inches */
XmNheight, 6000, /* 6 inches */
XmNresizePolicy, XmNONE, /* remain this a fixed size */
NULL);
/* When scrolled, the drawing area will get expose events */
XtAddCallback (drawing_a, XmNexposeCallback, redraw, NULL);
/* Pushing the clear button clears the drawing area widget */
XtAddCallback (pb, XmNactivateCallback, clear_it, drawing_a);
/* convert drawing area back to pixels to get its width and height */
XtVaSetValues (drawing_a, XmNunitType, XmPIXELS, NULL);
XtVaGetValues (drawing_a, XmNwidth, &width, XmNheight, &height, NULL);
/* create a pixmap the same size as the drawing area. */
pixmap = XCreatePixmap (XtDisplay (drawing_a),
RootWindowOfScreen (XtScreen (drawing_a)), width, height,
DefaultDepthOfScreen (XtScreen (drawing_a)));
/* clear pixmap with white */
set_color (drawing_a, "White", NULL);
//set_color (drawing_a, "White");
XFillRectangle (XtDisplay (drawing_a), pixmap, gc, 0, 0, width, height);
XtRealizeWidget (toplevel);
XtAppMainLoop (app);
}
/* Action procedure to respond to any of the events from the
* translation table declared in main(). This function is called
* in response to Button1 Down, Up and Motion events. Basically,
* we're just doing a freehand draw -- not lines or anything.
*/
void
draw(widget, event, args, num_args)
Widget widget;
XEvent *event;
String *args;
int *num_args;
{
static Position x, y;
XButtonEvent *bevent = (XButtonEvent *) event;
if (*num_args != 1)
XtError ("Wrong number of args!");
if (strcmp (args[0], "down")) {
/* if it's not "down", it must either be "up" or "motion"
* draw full line from anchor point to new point.
*/
XDrawLine (bevent->display, bevent->window, gc, x, y,
bevent->x, bevent->y);
XDrawLine (bevent->display, pixmap, gc, x, y, bevent->x, bevent->y);
}
/* freehand is really a bunch of line segements; save this point */
x = bevent->x;
y = bevent->y;
}
/* Clear the window by clearing the pixmap and calling XCopyArea() */
void
clear_it(pb, client_data, call_data)
Widget pb;
XtPointer client_data;
XtPointer call_data;
{
Widget drawing_a = (Widget) client_data;
XmPushButtonCallbackStruct *cbs =
(XmPushButtonCallbackStruct *) call_data;
/* clear pixmap with white */
XSetForeground (XtDisplay (drawing_a), gc,
WhitePixelOfScreen (XtScreen (drawing_a)));
/* this clears the pixmap */
XFillRectangle (XtDisplay (drawing_a), pixmap, gc, 0, 0, width, height);
/* drawing is now done using black; change the gc */
XSetForeground (XtDisplay (drawing_a), gc,
BlackPixelOfScreen (XtScreen (drawing_a)));
/* render the newly cleared pixmap onto the window */
XCopyArea (cbs->event->xbutton.display, pixmap, XtWindow (drawing_a), gc,
0, 0, width, height, 0, 0);
}
/* redraw is called whenever all or portions of the drawing area is
* exposed. This includes newly exposed portions of the widget resulting
* from the user's interaction with the scrollbars.
*/
void
redraw(drawing_a, client_data, call_data)
Widget drawing_a;
XtPointer client_data;
XtPointer call_data;
{
XmDrawingAreaCallbackStruct *cbs =
(XmDrawingAreaCallbackStruct *) call_data;
XCopyArea (cbs->event->xexpose.display, pixmap, cbs->window, gc,
0, 0, width, height, 0, 0);
}
/* callback routine for when any of the color tiles are pressed.
* This general function may also be used to set the global gc's
* color directly. Just provide a widget and a color name.
*/
void
set_color(widget, client_data, call_data)
Widget widget;
XtPointer client_data;
XtPointer call_data;
{
String color = (String) client_data;
Display *dpy = XtDisplay (widget);
Colormap cmap = DefaultColormapOfScreen (XtScreen (widget));
XColor col, unused;
if (!XAllocNamedColor (dpy, cmap, color, &col, &unused)) {
char buf[32];
sprintf (buf, "Can't alloc %s", color);
XtWarning (buf);
return;
}
XSetForeground (dpy, gc, col.pixel);
}
