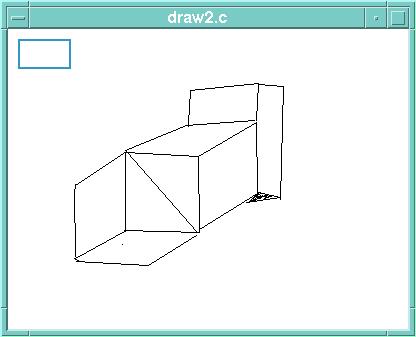

/* Written by Dan Heller and Paula Ferguson. * Copyright 1994, O'Reilly & Associates, Inc. * Permission to use, copy, and modify this program without * restriction is hereby granted, as long as this copyright * notice appears in each copy of the program source code. * This program is freely distributable without licensing fees and * is provided without guarantee or warrantee expressed or implied. * This program is -not- in the public domain. */ /* draw2.c -- extremely simple drawing program that demonstrates * how to draw into an off screen pixmap in order to retain the * contents of the DrawingArea widget. This allows us to redisplay * the widget if it needs repainting (expose events). */ #include <Xm/DrawingA.h> #include <Xm/PushBG.h> #include <Xm/RowColumn.h> #define WIDTH 400 /* arbitrary width and height values */ #define HEIGHT 300 Pixmap pixmap; /* used to redraw the DrawingArea */ main(argc, argv) int argc; char *argv[]; { Widget toplevel, drawing_a, pb; XtAppContext app; GC gc; void drawing_area_callback(); XtSetLanguageProc (NULL, NULL, NULL); toplevel = XtVaAppInitialize (&app, "Demos", NULL, 0, &argc, argv, NULL, XmNwidth, WIDTH, XmNheight, HEIGHT, NULL); /* Create a DrawingArea widget. */ drawing_a = XtVaCreateWidget ("drawing_a", xmDrawingAreaWidgetClass, toplevel, NULL); /* add callback for all mouse and keyboard input events */ XtAddCallback (drawing_a, XmNinputCallback, drawing_area_callback, NULL); XtAddCallback (drawing_a, XmNexposeCallback, drawing_area_callback, NULL); gc = XCreateGC (XtDisplay (drawing_a), RootWindowOfScreen (XtScreen (drawing_a)), 0, NULL); XtVaSetValues (drawing_a, XmNuserData, gc, NULL); XSetForeground (XtDisplay (drawing_a), gc, WhitePixelOfScreen (XtScreen (drawing_a))); /* create a pixmap the same size as the drawing area. */ pixmap = XCreatePixmap (XtDisplay (drawing_a), RootWindowOfScreen (XtScreen (drawing_a)), WIDTH, HEIGHT, DefaultDepthOfScreen (XtScreen (drawing_a))); /* clear pixmap with white */ XFillRectangle (XtDisplay (drawing_a), pixmap, gc, 0, 0, WIDTH, HEIGHT); /* drawing is now drawn into with "black"; change the gc for future */ XSetForeground (XtDisplay (drawing_a), gc, BlackPixelOfScreen (XtScreen (drawing_a))); /* add a pushbutton the user can use to clear the canvas */ pb = XtVaCreateManagedWidget ("Clear", xmPushButtonGadgetClass, drawing_a, NULL); /* if activated, call same callback as XmNinputCallback. */ XtAddCallback (pb, XmNactivateCallback, drawing_area_callback, NULL); XtManageChild (drawing_a); XtRealizeWidget (toplevel); XtAppMainLoop (app); } /* Callback routine for DrawingArea's input and expose callbacks * as well as the PushButton's activate callback. Determine which * it is by testing the cbs->reason field. */ void drawing_area_callback(widget, client_data, call_data) Widget widget; XtPointer client_data; XtPointer call_data; { static Position x, y; XmDrawingAreaCallbackStruct *cbs = (XmDrawingAreaCallbackStruct *) call_data; XEvent *event = cbs->event; Display *dpy = event->xany.display; if (cbs->reason == XmCR_INPUT) { /* activated by DrawingArea input event -- draw lines. * Button Down events anchor the initial point and Button * Up draws from the anchor point to the button-up point. */ if (event->xany.type == ButtonPress) { /* anchor initial point (i.e., save its value) */ x = event->xbutton.x; y = event->xbutton.y; } else if (event->xany.type == ButtonRelease) { /* draw full line; get GC and use in XDrawLine() */ GC gc; XtVaGetValues (widget, XmNuserData, &gc, NULL); XDrawLine (dpy, cbs->window, gc, x, y, event->xbutton.x, event->xbutton.y); /* draw into the pixmap as well for redrawing later */ XDrawLine (dpy, pixmap, gc, x, y, event->xbutton.x, event->xbutton.y); x = event->xbutton.x; y = event->xbutton.y; } } if (cbs->reason == XmCR_EXPOSE || cbs->reason == XmCR_ACTIVATE) { GC gc; if (cbs->reason == XmCR_ACTIVATE) /* Clear button pushed */ widget = XtParent (widget); /* get the DrawingArea widget */ XtVaGetValues (widget, XmNuserData, &gc, NULL); if (cbs->reason == XmCR_ACTIVATE) { /* Clear button pushed */ /* to clear a pixmap, reverse foreground and background */ XSetForeground (dpy, gc, WhitePixelOfScreen (XtScreen (widget))); /* ...and fill rectangle the size of the pixmap */ XFillRectangle (dpy, pixmap, gc, 0, 0, WIDTH, HEIGHT); /* don't foreget to reset */ XSetForeground (dpy, gc, BlackPixelOfScreen (XtScreen (widget))); } /* Note: we don't have to use WIDTH and HEIGHT--we could pull the * exposed area out of the event structure, but only if the reason * was XmCR_EXPOSE... make it simple for the demo; optimize as needed. */ XCopyArea (dpy, pixmap, event->xany.window, gc, 0, 0, WIDTH, HEIGHT, 0, 0); } }
