Interactive Cam Mechanism Design - Sample Translating Follower

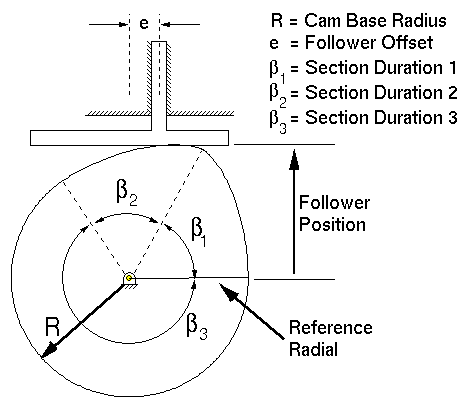

This is a sample translating cam design with pre-specified input parameters in the input dialogboxes. Following is a list of variables definitions :

Base Radius -- Initial radius of the cam
Follower Offset -- Distance from the cam center to the follower.
Profile Points -- The number of points used to calculate the cam profile.
Cam Angular Velocity -- The rotational velocity of the cam. Positive clockwise.
Cutter Radius -- The radius of the CNC mill cutter
Cutter Length -- The length of the CNC mill cutter
Cam Thickness -- The thickness of the cam and the depth that the cutter moves to
Feedrate -- Feedrate for machining
Spindle Speed -- Spindle Speed of the cutter
X-Y-Z Offset -- CNC home position offsets
Duration -- duration of a section [deg]
Lift -- Change in the displacement of follower for a section
Motion -- [harmonic/cycloidal] Follower motion, shape of displacement curve.

Input Parameters:

Unit Type:
Initial Cam Parameters:

Base Radius                  [m or ft] :
Follower Offset              [m or ft] :
Profile Points                         :
Cam Angular Velocity           [rad/s] :

CNC Parameters:

Cutter Radius      [m or ft]:        Cutter Length      [m or ft]:
Cam Thickness      [m or ft]:      Feedrate       [m/min or m/ft]:
Spindle Speed          [rpm]:

CNC Home Position Offset:
NOTE: cnc home position offset measured from OLD home to NEW home
X Offset           [m or ft]:
Y Offset           [m or ft]:
Z Offset           [m or ft]:


Duration [deg]: Total Lift :


Duration [deg]: Total Lift :


Duration and Lift will be determined automatically for this section

What outputs do you want to display:

  1. Cam Profile
  2. Position
  3. Velocity
  4. Acceleration
  5. Transmission Angle
  6. CNC code
  7. Animation -- Number of frames:
